SKU: 6ES7142-5AF00-0BL0

Availability
The product is available upon order. Contact us for an offer.
Request Quote

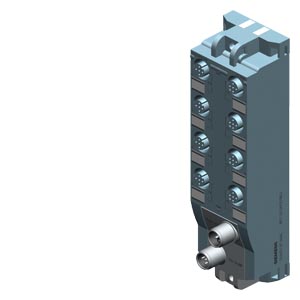

SIMATIC ET 200AL, IO-Link, DQ 8x 24 V DC/2 A, 8x M12, Degree of protection IP67

Product
Article Number (Market Facing Number) 6ES7142-5AF00-0BL0
Product Description SIMATIC ET 200AL, IO-Link, DQ 8x 24 V DC/2 A, 8x M12, Degree of protection IP67
Product family IO-Link I/O modules
Product Lifecycle (PLM) PM300:Active Product
Price data
Metal Factor None
Delivery information
Export Control Regulations AL : N / ECCN : EAR99H
Standard lead time ex-works 20 Day/Days
Packaging Dimension 5,50 x 17,80 x 5,50
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4047623411390
UPC 195125114722
Commodity Code 85389091
LKZ_FDB/ CatalogID ST76
Product Group X03V
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 03.08.2020
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation –
REACH Art. 33 Duty to inform according to the current list of candidates
Lead monoxide (lead … CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
Silicic acid, lead s… CAS-No. 11120-22-2 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Silicic acid, lead salt

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
Classifications

Version Classification
eClass 12 27-24-26-04
eClass 6 27-24-26-04
eClass 7.1 27-24-26-04
eClass 8 27-24-26-04
eClass 9 27-24-26-04
eClass 9.1 27-24-26-04
ETIM 7 EC001599
ETIM 8 EC001599
IDEA 4 3566
UNSPSC 15 32-15-17-05
